Product Overview
Asenware AW-D117 Addressable annunciator board is a 24 Zone Board, which can be configured at the site as per
the Fire Alarm System Layout drawing. It includes keyboard, Power LED and buzzer. AW-D118 is extensions 24 zone board. Both can be used with AW-FP100 Series Addressable Fire Alarm Control Panel. One AW-D117 can be connected with 4 pieces of AW-D118 for maximum 120 zones.
Product Description
Product Overview
Asenware AW-D117 Addressable annunciator board is a 24 Zone Board, which can be configured at the site as per
the Fire Alarm System Layout drawing. It includes keyboard, Power LED and buzzer. AW-D118 is extensions 24 zone board. Both can be used with AW-FP100 Series Addressable Fire Alarm Control Panel. One AW-D117 can be connected with 4 pieces of AW-D118 for maximum 120 zones.
Product Features
Three Lines of 40 Character each LCD
LED Indication for Alarm, Fault and Supervisory Push Buttons to acknowledge the silence
Lamp Test from Key Switch
IP 30 Cabinet
Model Number Description

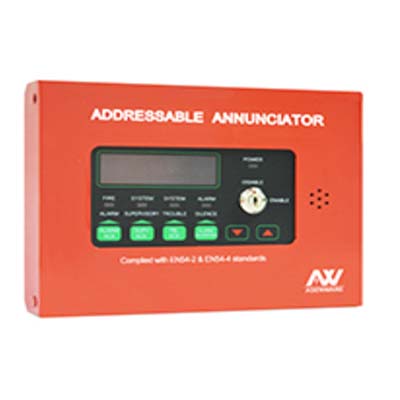

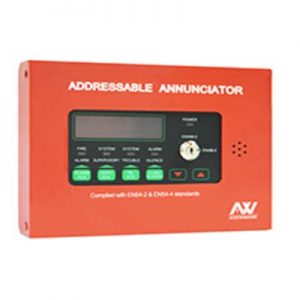

AW-D116 Addressable Annunciator Panel
AW-D117 24 Zones Addressable Annunciator Board
AW-D118 24 Zones Addressable Annunciator Board Extension
