Product Overview

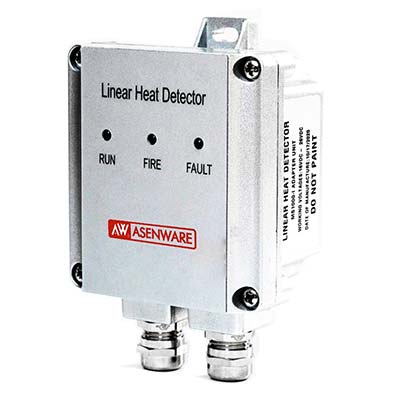

Control Unit AW-D401 is used for digital type LHD cable. Digital type LHD cable with comparatively simple output signal, the control unit and EOL box are easy to install and operate.
Product Description
Product Overview
Control Unit AW-D401 is used for digital type LHD cable. Digital type LHD cable with comparatively simple output signal, the control unit and EOL box are easy to install and operate.
Technical Parameters
Operating Voltage : 24VDC
Allowed Voltage Range : 16VDC-28VDC
Operating Current
Standby Current: ≤20mA
Alarm Current: ≤30mA
Fault Current: ≤25mA
Operating environment
Temperature: -45°C–+60°C
Relative humidity: 95%
IP Rating: IP66
Dimensions:90mm×85mm×52mm (H×W×D)
Download Datasheet
