Semi-flush or surface mounting
Compatible with the latest EN standards
Lever reusable (non-glass break)
LED indicator
Full electronic coding, through AW-FR100 encoder scene rewrite

Technical Parameters

Executive Standard: EN54-11

Protection class: IP30

Operating voltage: Loop 24V

Operating current : Monitoring status ≤ 2mA, Alarm status ≤15mA

Application : For indoor use

Operating temperature: -10°C~55°C，Relative humidity : ≤95%(non-condensing)

Indicator : Red alarm indicator flashes when it is under normal condition, press the manual button lit work

Encoding: Coded by the encoder, the address range from 1to 250 optional : ABS, red
Materials and colors Wiring: The promise of two bus system(Loop In+, Loop In-)
Size: 99mm x 91.5mm x 66.3mm
Mating Host : AW-FP100 Addressable Fire Alarm Control Panel

Weight: About 95

Download Datasheet

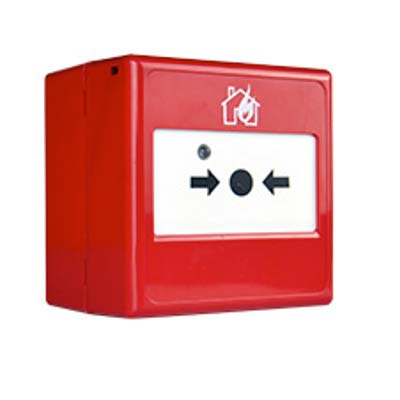

Asenware AW-D135A
