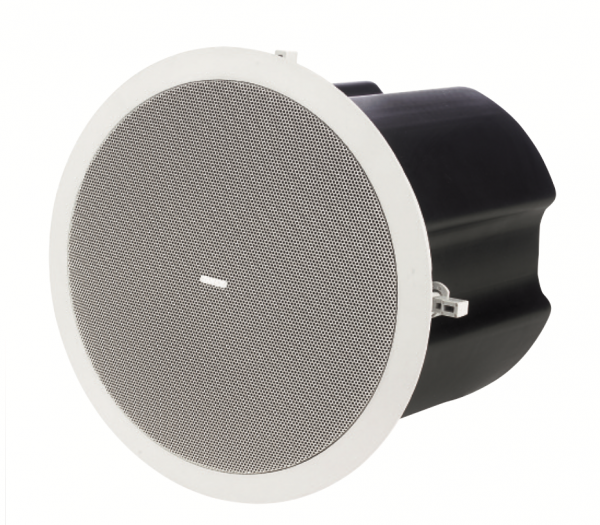

The Tannoy CVS6 is a full bandwidth ceiling speaker system. The design comprises a 150mm (6.00”) mid bass driver with a coaxially mounted 19mm (0.75”) high frequency sec- tion mounted in a vented, injection moulded, paintable front baffle manufactured from UV/weather resistant UL94V-0 ABS material.
The mineral loaded polypropylene cone material and nitrile rubber surround enhance dura- bility and long-term reliability. This compact unit is specifically designed for applications re- quiring the combination of excellent sonic quality for music and speech reinforcement and exceptional reliability.
The CVS6 is equipped with a low insertion loss 60W line transformer easily configurable to the following settings via front baffle mounted rotary tapping switch:
Product Description
The Tannoy CVS6 is a full bandwidth ceiling speaker system. The design comprises a 150mm (6.00”) mid bass driver with a coaxially mounted 19mm (0.75”) high frequency sec- tion mounted in a vented, injection moulded, paintable front baffle manufactured from UV/weather resistant UL94V-0 ABS material.
The mineral loaded polypropylene cone material and nitrile rubber surround enhance dura- bility and long-term reliability. This compact unit is specifically designed for applications re- quiring the combination of excellent sonic quality for music and speech reinforcement and exceptional reliability.
The CVS6 is equipped with a low insertion loss 60W line transformer easily configurable to the following settings via front baffle mounted rotary tapping switch:
70V systems: 60W / 30W / 15W / 7.5W / OFF & low Impedance operation 100V systems: 60W / 30W / 15W / OFF & low Impedance operation

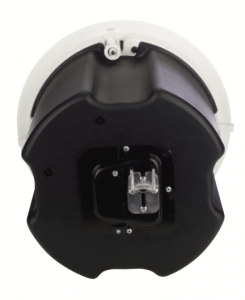

The CVS6 is supplied with an integral zinc-plated steel back can, with recessed termination box, to satisfy the vast majority of installation application requirements. The removable locking connector has screw terminals for secure wire termination and “loop through” facil- ity. Strain relief is provided by a clamping mechanism for use with plenum rated cable or conduit. Security toggle clamps make for quick and easy installation, while two tile support rails and one C-ring are also included in the package. A plaster (mud) ring is available as an optional accessory.
Features
The Tannoy CVS6 is a full bandwidth ceiling speaker system. The design comprises a 150mm (6.00”) mid bass driver with a coaxially mounted 19mm (0.75”) high frequency sec- tion mounted in a vented, injection moulded, paintable front baffle manufactured from UV/weather resistant UL94V-0 ABS material.
The mineral loaded polypropylene cone material and nitrile rubber surround enhance dura- bility and long-term reliability. This compact unit is specifically designed for applications re- quiring the combination of excellent sonic quality for music and speech reinforcement and exceptional reliability.
The CVS6 is equipped with a low insertion loss 60W line transformer easily configurable to the following settings via front baffle mounted rotary tapping switch:
70V systems: 60W / 30W / 15W / 7.5W / OFF & low Impedance operation 100V systems: 60W / 30W / 15W / OFF & low Impedance operation
The CVS6 is supplied with an integral zinc-plated steel back can, with recessed termination box, to satisfy the vast majority of installation application requirements. The removable locking connector has screw terminals for secure wire termination and “loop through” facil- ity. Strain relief is provided by a clamping mechanism for use with plenum rated cable or conduit. Security toggle clamps make for quick and easy installation, while two tile support rails and one C-ring are also included in the package. A plaster (mud) ring is available as an optional accessory.

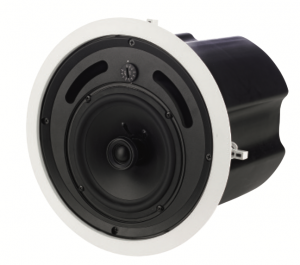

• Coaxially mounted 150 mm (6.00″) mineral loaded woofer with rubber surround and 19mm (0.75″) soft dome diffraction loaded tweeter.
• High power & high sensitivity with extended frequency response and very low distortion
• Wide, controlled constant directivity dispertion for optimum coverage.
• UV/weather resistant UL94V-0 ABS front baffle • Easily accessible tapping switch on front baffle. • Low insertion loss 60W line transformer
• Ferrofluid cooled neodymium HF
• Packaged with tile rails and C-ring for quick & easy installation and simple stocking logistics
Applications
• Multizone Foreground Music & Paging Systems • Boardrooms & Offices
• Business Music Systems
• Airports, Convention Centres, Hotels
• Reception / Waiting Rooms
• Houses of Worship
• Retail Outlets / Shopping Malls • Lounges / Bars
• Cruise Ships
• Courtrooms
